Easyinsmile Easydo Endodontic Sonic Activator Endo irrigation

Easyinsmile Endo EasyDo Sonic Activator Endodontic New Replease/Not same...

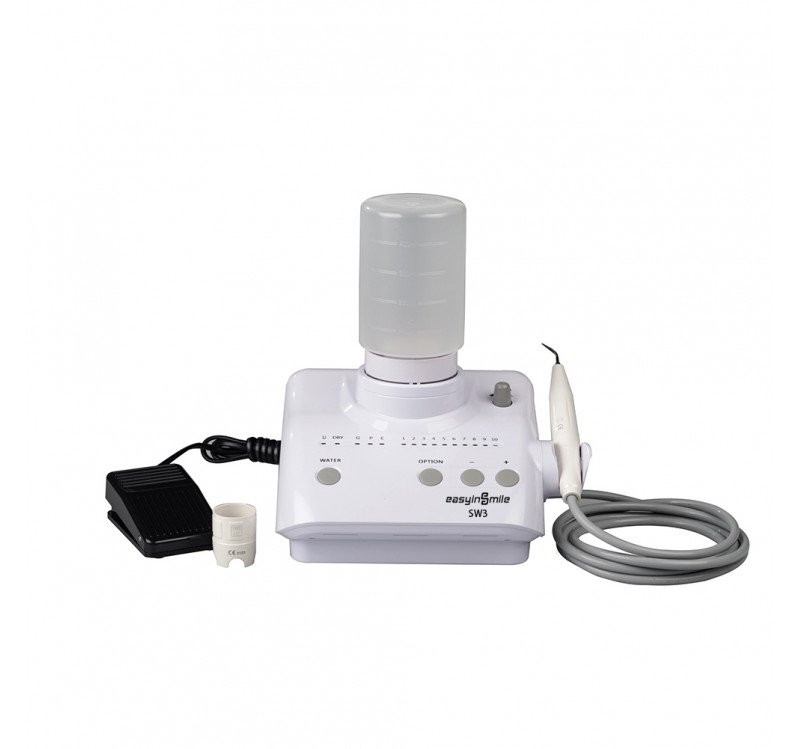

US$ 198 - ULTRASONIC DENTAL SCALER EASYINSMILE ULTRASONIC SCALER SW3 WITH WATER BOTTLE COMPATIBLE WITH SATELEC/WOODPECKER-DTE

ultrasonic dental scaler Easyinsmile Ultrasonic scaler SW3 With water bottle compatible with SATELEC/Woodpecker-DTE Ultrasonic scaler

Click to buy

Instruction:

Easyinsmile Ultrasonic scaler SW3 is used for the dental calculus elimination and root canal treatment.

The new product SW3 ultrasonic scaler has scaling, perio, endo and auto-water supply functions with the following features:

1.With auto-water supply function , easier operation .
2.The inner water pipe is made from antiseptic material, clinical fluids, such as hydrogen peroxide,
chlorhexidine and sodium Hypochlorite, etc, can be used perfectly under the mode of auto-water supply system so that the performance of perio and endo is improved dramatically.
3. The handpiece is detachable and can be autoclaved to the temperature of 135℃ and the pressure of 0.22MPa.
4. Automatic frequency tracking ensures that the machine always works on the best frequency and performs more steadily.
5. Controlled by PC, easy operation and more efficient for scaling. These featurs make SK-D1 become a new generation product is the world dental market.

Pay attention to its Three Highlight Features!

No.1 It uses voltage transformer rather than AC adapter to avoid the feeling of pain when scaling!
No.2 The main unit uses fireproof material.
No.3 The autowater supply system adapts diaphragm pump, which will be more durable than peristaltic pump.

Technical specification:

1.Voltage Transformer (please leave a message about which type you need, 110v or 220v)
2.Main unit input:24V~ 1.3A
3.Output primary tip vibration excursion:≤100m
4.Output half-excursion force:<2N
5.Output tip vibration frequency:28kHz±35Hz
6.Output power:3W to 20W
7.Main unit fuse:T1.6AL 250V
8.Adapter fuse:T0.5AL 250V
9.Weight of main unit:1.17g
10.Weight of adapter:1.2kg
11.Operating mode:Continuous operation
12.Type of protection against electric shock:Class II equipment
13.Degree of protection against electric shock:Type BF applied part
14.Degree of protection against harmful ingress of water:Ordinary equipment
15.Protection degree against water(used on the foot switch):IPX1
16.Applied part of the equipment:handpiece and tip
17.Degree of safety of application in the presence of a Flammable Anaesthetic Mixture with air or with Oxygen or Nitrous Oxide:
Equipment not suitable for being used in the presence of a flammable anaesthetic mixture with air or with oxygen or nitrous oxide.

Easyinsmile SW3 Packing list:

1. Main unit
2. Detachable handpiece
3. Adapter of power supply
4. Foot Switch
5. Scaling tip GD1 G2 GD3 GD4 PD1 fit EMS Woodpecker
6. Torque wrench
7. 2 * Waterproof “O” ring
8. Packing list
9. Instruction manual
10. Warranty card
11. Reservoir (350 ml )
12. Reservoir (500 ml )

Screw connection or coupling of its Handpiece, tube, and scaler tips is compatible with other Brands like Satelec Woodpecker, etc.

Benefits of using ultrasonic scalers

Benefits of using ultrasonic scalers

www.easyinsmile.com
We ship worldwide by DHL Free Shipping on order over US$ 89

Dental plaque, a bacteria film that usually forms on the teeth is the major cause of gum disease (periodontal). When bacteria settles on the teeth, a whitish film known as biofilm is formed and if not removed, it can lead to the formation of pockets; separation areas between teeth and the surrounding gums where plaque hardens into deposits called tartar or calculus.

The main reason for having the teeth regularly cleaned by a professional dental hygienist is to have the calculus and plaque deposits removed. Removal of the deposits is known as scaling which can be done using either hand held scalers or ultrasonic power scalers.

How ultrasonicpower scalers work

Power scaler’s main action is mechanical; they use ultrasonic vibration energy to remove and crush the calculus deposits. Other actions are; creating shockwaves to disrupt bacterial cells or using turbulence to disrupt the biofilms and irrigation; therapeutic flushing and washing of gum pockets as well as the root surface with cooling water. One should obtain proper training on the use of ultrasonic power scalers so as to effectively remove the deposits and promote healing.

Pros of using ultrasonic power scalers

According to research, the use of ultrasonic power scalers has the following advantages:

· They are as effective for use as manual instruments for the removal of calculus in shallow gum pockets but they are more effective in gum pockets which are greater than 4mm.

· They are effective in disrupting biofilm from the root surface and within gum pockets which makes them very helpful especially when patients require frequent cleanings or teeth maintenance.

· Their specially designed tips can penetrate deep in the periodontal pockets compared to manual instruments. They are also more effective in cleaning the difficult crannies and nooks like furcation; the area where the roots join in multi-rooted teeth.

· When properly used, they are kind to the structure of the tooth which is important in repeated cleanings.

· The coolant spray provides irrigation; flushing of the affected area hence promoting healing by getting rid of the bacteria and other bi-products. It also allows the dental hygienist to see when scaling.

· It takes less time to scale the teeth using ultrasonic teeth scaling compared to when using manual instruments.

· The smaller tip of this instruments causes less distention of the tissue and they require just a little pressure which makes it comfortable for the patient.

Cautions when using Power Scalers

· The production of aerosol which leads to the formation of contaminated mist. To prevent this, one should wear protective equipment.

· Ultrosonic power scalers can affect some cardiac pacemakeers. Though the modern cardiac pacemakers are shielded from this, if you have one, you should inform the hygienist or the dentist before purchase or use.

· The use of ultrasonic power scalers is not recommended for patients with hypersensitive teeth including the newly erupted teeth and the primary teeth. Inform the dentist if your teeth are sensitive to change in temperature.

· Ultrasonic power scalers should not be used in areas off demineralization, composite or porcelain restorations or titanium implants unless you use tips which are specially designed so that they do not scratch them.

Protection from cross infection during ultrasonic teeth scaling

Protection from cross infection during ultrasonic teeth scaling Article 2.

One of the most common practices for teeth cleaning, namely plaque removal is ultrasonic scaling. This is an essential procedure to endure, as plaque is known to be the main cause of gum disease. As technology has improved over the years we are now able to break up and remove the build up of calculus and plaque on our teeth with ultrasonic power scalers.

The tool

These types of ultrasonic scalers have improved over time. Today the common tool used is a power scaler. This machine uses the energy of ultrasonic vibration to crush and remove the pockets of calcified calculus deposits between the teeth and gums. It is extremely effective in penetrating deep into the gum tissue without disrupting the gums themselves.

The issue

These power scalers work on such a deep level that the deep pockets of calculus crush open after long stints of calcification. This creates a mist of bacteria that comes out of the mouth during the procedure. This mist, along with fresh gum tissue open to the air, creates a prime possibility for cross-infection.

After so much time with calcified calculus and plaque in-between certain areas of teeth and gums it can be easy for infection to take place. Almost like an open wound, the gums are vulnerable to cross-infection.

Cross-infection can also take place for the dentist or others after this procedure. The mist from the calcified plaque breaking open bursts outwards from the gums straight into the open air. The possible infecting bacteria spreads and lands in a wide area.

Best practices for avoiding cross-infection

Cross-infection has been an issue in the medical and dental field since it began. The dentist performing the procedure avoids direct contamination with the protective layers of their safety glasses, surgical gloves, and mouth guard masks. This is the contamination from many volatile organic chemicals such as water, tissue, blood, saliva and tooth dust. But this takes very long procedure to clean the scaler tips and the cross infection still remains.For this reason,more and more dental hygenists are looking for a Scaling patient owned kits which they can sell to their patients for extra profit and also every patient owned their own kit.

www.easyinsmile.com
Free DHL Shipping Worldwide on order over US$ 89

The room itself must be wiped down and disinfected between procedures. The American Dental Association (ADA) suggests and supports the idea of the “Wipe-Spray-Wipe” technique for the room in-between procedures. An area of at least six feet from the patient must be disinfected.

As far as avoiding contamination within the mouth of the patient it is quite simple. The first and strongest layer of defense used is an antiseptic rinse with a mouthwash. The most common of these mouthwashes used is Chlorhexidine.

Home procedure

All of the practices listed above should be followed quite similarly at home. While there is much less of any chance that the contaminants from your own mouth will infect you, it can be unsafe for other members of your family.

When performing ultrasonic teeth scaling at home make sure to wear surgical gloves to avoid the contamination within your own mouth. Once finished with the cleaning, follow the guidelines set above. Use an antiseptic mouthwash to kill the bacteria in your mouth. Clean and disinfect a radius of at least six feet from where you performed the cleaning. After finishing the home procedure, enjoy the clean feeling of your fresh teeth, and disinfected bathroom.

What Is An Ultrasonic Scaler

Easyinsmile.com
Professional Dental Online
Free Shipping all over the world with order over US$ 89 by DHL

What Is An Ultrasonic Scaler

The periodontal industry has been witnessing the introduction of a myriad of new products. Many of the recognized brands are revolutionizing the industry and reducing the hand and wrist fatigue as well as tissue trauma. Ultrasonic scaler is the common hygiene and periodontal armamentarium and it is used by most dental professionals. The ultrasonic scaler is an air-driven device, which operates at a very low frequency. This device is used for removing calculus from the tooth surface rapidly. The tip of the scaler vibrates and moves in an elliptical motion with an optimum frequency between 18-32kHz. Ultrasonic scaler tip movement is controlled by a low-voltage magnetic signal. The tip of the scaler moves in a back-and-forth motion and it works along the side of your tooth. Thus, it shaves off calculus and debris from your tooth.


The use of ultrasonic scaler has improved the practice of periodontal debridement dramatically. The dentistry has been using ultrasonic technology for the past many decades. However, the recent improvements in this field are fast accepting because of their effectiveness. Ultrasonic scalers are highly beneficial for removing hard and soft deposits safely and efficiently. These instruments are also beneficial for detoxifying the areas being treated.


The acoustic streaming that occurs concurrently when treating with ultrasonic scalers produces a constant flushing action. As a result, the scaler removes bacterial bio-film and loosens debris from the area effectively. When the vibrating tip of the ultrasonic scaler comes in contact with the fluid, it will lead to the creation of cavitation. This action leads to the formation of millions of bubbles. Shock waves are created due to implode of bubbles. It tears apart the cell wall of pathogens. Water passes through the tip of the scaler. Heat is generated at the tip during this process, so the tip should be kept moving over the teeth.


It is not good to keep the tip on an individual tooth for more than 10 seconds. Pressing harder than one ounce of pressure must also be avoided strictly. When you press hard, the tip stops from vibrating. This will reduce the effectiveness of the tip. The concentration of heat in one area can lead to the possible lethal consequences for the pulp. Therefore, it is better to concentrate on a group of 3-4 teeth and scale them. This is highly helpful for preventing overheating on one tooth.


Different shapes of scaling tips are available today. Some units allow interchangeable inserts that help you to perform various functions such as root planning, periodontal pocket management, and subgingival scaling. If the tip is very thinner, you will get a finer action.


Ultrasonic tip spray is highly effective for eliminating dental plaque. You can remove dental plaque and calculi more effectively if you use ultrasonic instrumentation. It is also highly useful for reducing the time required for dental treatment. This device is also helpful for removing heavy deposits effectively. Scalers are excellent for removing stains. The tips of ultrasonic scalers are designed for penetrating deeper into periodontal pockets. So, it is more effective for cleaning even difficult nooks and crannies. Coolant sprays provide irrigation that improves healing by eliminating bacteria and the bi-products.

What else we can do to prevent our patient from cross infection during the ultrasonic scaler treatment

Professional Dental Online
We ship to all over the world free shipping DHL on order over US$ 87

What else we can do to prevent our patient from cross infection during the ultrasonic scaler treatment

The cross infection can be caused during various dental treatment procedures and ultrasonic scaling of teeth is one of them. The dentist ultrasonic scaler used in this procedure can produce bacterial aerosols in high amount which considerably increase the chances of cross infection. During dental procedures the composition of the aerosol produced by the air and water emerging from the mouth of the patient can be harmful not only for the patient but for the dentist also. This hazardous situation can be prevented by using various protective measures.

Reasons of cross infection

The growth of microbes is a common event while treating the dental oral cavities, especially while using dentist ultrasonic scaler, which can be harmful more for the dentist because of repeated exposure to these microorganisms in their professional life. They can get contaminated by the aerosols containing infectious elements, instruments or in person contact with contaminated tissues. During ultrasonic scaling the dentist has to remove calculus deposits and bacterial plaque from the dental surface to obtain an acceptable surface of their roots to protect healthy tissues of their teeth.

The generator driven ultrasonic scaler used for this purpose create heat due to friction when placed in the teeth which is cooled through a stream of water which helps in generating aerosols due to mixing of contaminants in the fluids in the mouth to contaminate the entire environment around the dentist and the patient.

Protecting the patient from cross infection

There are several methods to protect the patient as well as the dentist from the cross infection generated by the use of the ultrasonic scaler.

High velocity evacuation procedure: The chances of aerosols and splatter can be reduced considerably by using high velocity evacuation procedures as it can reduce the chances contamination more than 90%. It can be used effectively either with the help of an assistant or a saliva ejector, in the absence of the assistant.

Traditional barriers: Standard methods to control infection during dental treatments like protective eye wear or face shield can also be used to protect the dentist and his assistant from the possibility of cross infection while using dentist ultrasonic scaler.

Proper maintenance of air conditioning system: The patient as well as the dentist and his staff can also be saved from cross infection during ultrasonic scaling procedure if the clinic id properly ventilated even when it is closed at night. It is possible only its air conditioning system is regularly maintained as it helps in reducing the concentration of bacterial aerosols in the environment of the dental clinic.

Disinfecting the mouth of the patient: The chances of cross contamination while using the ultrasonic scaler can be reduced considerably by disinfecting the mouth of the patient with a quality mouthwash containing essential oil along with 0.2% chlorhexidine before starting the procedure. It will reduce the formation of colony forming units in patient’s mouth causing cross infection in the entire environment of the clinic.

Thus the patient can be protected from cross infection during the use of dentist ultrasonic scaler for scaling his teeth.
